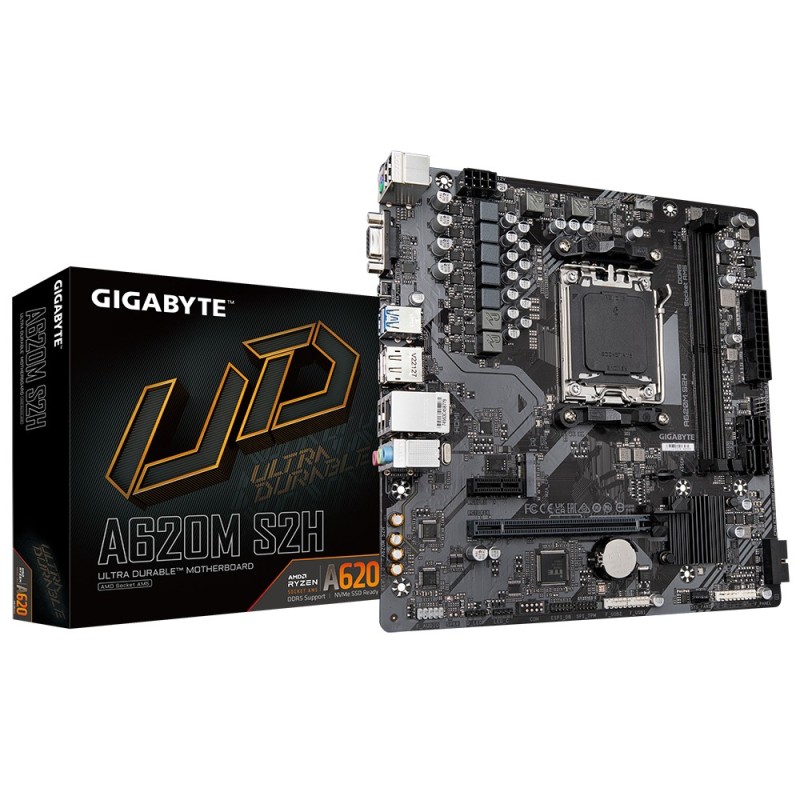

GIGABYTE A620M S2H mātes plate AMD A620 AM5 pieslēgvieta mikro ATX

Datu lapa

SUMMARY

GIGABYTE A620M S2H MOTHERBOARD - SUPPORTS AMD RYZEN 8000 CPUS, 5+2+2 PHASES DIGITAL VRM, UP TO 7200MHZ DDR5 (OC), 1XPCIE 4.0 M.2, GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER&

CATEGORY CODE

MBA

CNCODE

84733020

UNIT BOX HEIGHT

0.055

UNIT BOX LENGTH

0.27

UNIT BOX WIDTH

0.27

MAXIMUM RESOLUTION, pixels

4096 X 2160

DISPLAYPORT VERSION

1.4

DisplayPorts quantity

1

DIRECTX VERSION

12.0

PRODUCT COLOUR

BROWN

PARALLEL PROCESSING TECHNOLOGY SUPPORT

NOT SUPPORTED

UNITS PER PALLET

0

UNITS PER SHIPPING BOX

10

UNIT CALCULATED VOLUME, cubm

0.005034

UNIT CALCULATED WEIGHT, kg

0.95

HDMI ports quantity

1

HDMI VERSION

2.1

HDCP

Jā
YES

USB CONNECTOR TYPE

USB TYPE-A/USB TYPE-C

WINDOWS OPERATING SYSTEMS SUPPORTED

WINDOWS 10 X64/WINDOWS 11 X64

Battery technology

LITHIUM-MANGANESE DIOXIDE (LIMNO2)

PACKAGE DEPTH, mm

265

PACKAGE HEIGHT, mm

54

PACKAGE WEIGHT, g

907

PACKAGE WIDTH, mm

265

CABLES INCLUDED

SATA

Wi-Fi

No
Nē

Bundled software

NORTON INTERNET SECURITY&NEWLINE;LAN BANDWIDTH MANAGEMENT SOFTWARE

Battery type

CR2032

Processor manufacturer

AMD

AUDIO OUTPUT CHANNELS, channels

7.1

Motherboard chipset

AMD A620

MOTHERBOARD CHIPSET FAMILY

AMD

MOTHERBOARD FORM FACTOR

MICRO ATX

PC HEALTH MONITORING

FAN/TEMPERATURE/VOLTAGE/WATER COOLING

COMPATIBLE PROCESSOR SERIES

AMD RYZEN 7000 SERIES

PROCESSOR SOCKET

SOCKET AM5

SUPPORTED PROCESSOR SOCKETS

SOCKET AM5

ECC СOMPATIBILITY

NON-ECC

MAXIMUM INTERNAL MEMORY, GB

96

MEMORY CHANNELS

DUAL-CHANNEL

MEMORY SLOTS TYPE

DIMM

NUMBER OF MEMORY SLOTS

2

SUPPORTED MEMORY CLOCK SPEED (MAX), MHz

7200

SUPPORTED MEMORY CLOCK SPEEDS, MHz

4400/4800/5200/5600/6000/6200/6400/6600/6800/7200

SUPPORTED MEMORY TYPES

DDR5-SDRAM

UNBUFFERED MEMORY

YES

NUMBER OF HDDS SUPPORTED

4

NUMBER OF STORAGE DRIVES SUPPORTED

5

RAID levels

0/1/10

RAID SUPPORT

YES

SUPPORTED STORAGE DRIVE INTERFACES

M.2,SATA III

SUPPORTED STORAGE DRIVE TYPES

HDD & SSD

COMPONENT FOR

PC

ATX POWER CONNECTOR (24-PIN)

YES

CPU FAN CONNECTOR

YES

EPS POWER CONNECTOR (8-PIN)

YES

FRONT PANEL AUDIO CONNECTOR

YES

FRONT PANEL CONNECTOR

YES

NUMBER OF SATA III CONNECTORS

4

RGB LED PIN HEADER

YES

TPM CONNECTOR

YES

USB 2.0 CONNECTORS

2

USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS

1

ETHERNET LAN (RJ-45) PORTS

1

HEADPHONE OUTPUTS

3

USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY

2

ETHERNET INTERFACE TYPE

GIGABIT ETHERNET

ETHERNET LAN

YES

NUMBER OF M.2 (M) SLOTS

1

ACPI VERSION

5.0

BIOS MEMORY SIZE, Mbit

256

BIOS TYPE

UEFI AMI

CLEAR CMOS JUMPER

YES

DESKTOP MANAGEMENT INTERFACE (DMI) VERSION

2.7

SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION

2.7

BATTERY WEIGHT, g

3

COUNTRY OF ORIGIN

CHINA

LITHIUM WEIGHT PER BATTERY, g

0.07

NUMBER OF BATTERY CELLS

1

PRODUCTS PER SHIPPING (INNER) CASE, pc(s)

1

MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB

96

Batteries included

Yes

SUPPORTED MEMORY MODULE CAPACITIES

12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB

WARRANTY PERIOD, year(s)

3

12V POWER CONNECTOR

YES

TOTAL NUMBER OF SATA CONNECTORS

4

MICROPHONE IN

YES

PS/2 PORTS QUANTITY

1

USB 2.0 PORTS QUANTITY

4

VGA (D-SUB) PORTS QUANTITY

1

PCI EXPRESS X1 SLOTS

1

PCI EXPRESS X16 SLOTS

1

Atmiņas kanāli

Duālais kanāls

Procesora atbalstīta maksimālā iekšējā atmiņa

96 GB
