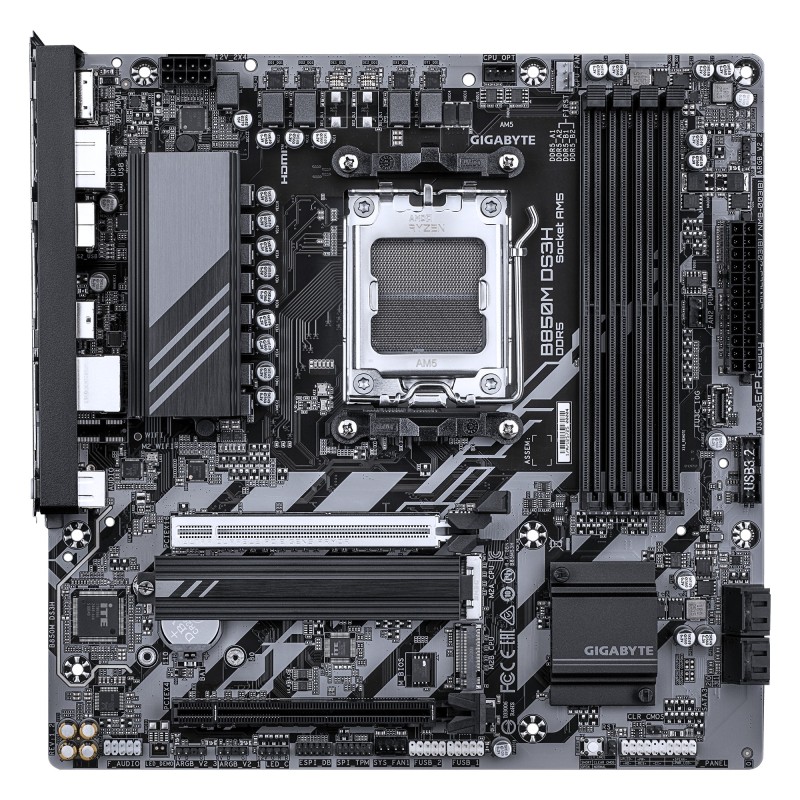

GIGABYTE B850M DS3H (rev. 1.2) AMD B850 AM5 pieslēgvieta mikro ATX

Datu lapa

SUMMARY

GIGABYTE B850M DS3H MOTHERBOARD - AMD RYZEN 9000 SERIES CPUS, 16+2+2 PHASES DIGITAL VRM, UP TO 8200MHZ DDR5 (OC), 1XPCIE 5.0 + 1XPCIE 4.0 M.2, 2.5 LAN, USB 3.2 GEN 2

CATEGORY CODE

MBA

CNCODE

84733020

UNIT BOX HEIGHT

0.265

UNIT BOX LENGTH

0.27

UNIT BOX WIDTH

0.07

AUDIO CHIP

REALTEK ALC897

AUDIO OUTPUT CHANNELS, channels

7.1

Motherboard chipset

AMD B850

MOTHERBOARD CHIPSET FAMILY

AMD

MOTHERBOARD FORM FACTOR

MICRO ATX

PC HEALTH MONITORING

FAN/TEMPERATURE/VOLTAGE/WATER COOLING

POWER SOURCE TYPE

ATX

PRODUCT COLOUR

BROWN

WINDOWS OPERATING SYSTEMS SUPPORTED

WINDOWS 10 X64/WINDOWS 11 X64

COMPATIBLE PROCESSOR SERIES

AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES

Processor manufacturer

AMD

PROCESSOR SOCKET

SOCKET AM5

SUPPORTED PROCESSOR SOCKETS

SOCKET AM5

ECC СOMPATIBILITY

NON-ECC

MAXIMUM INTERNAL MEMORY, GB

256

MAXIMUM INTERNAL MEMORY PER SLOT, GB

64

MEMORY CHANNELS

DUAL-CHANNEL

MEMORY SLOTS TYPE

DIMM

NUMBER OF MEMORY SLOTS

4

SUPPORTED MEMORY CLOCK SPEED (MAX), MHz

8200

SUPPORTED MEMORY CLOCK SPEEDS, MHz

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200

SUPPORTED MEMORY TYPES

DDR5-SDRAM

UNBUFFERED MEMORY

YES

NUMBER OF HDDS SUPPORTED

4

NUMBER OF STORAGE DRIVES SUPPORTED

6

RAID levels

0/1/10

RAID SUPPORT

YES

SUPPORTED STORAGE DRIVE INTERFACES

M.2,SATA III

SUPPORTED STORAGE DRIVE TYPES

HDD & SSD

DIRECTX VERSION

12.0

COMPONENT FOR

PC

MAXIMUM RESOLUTION, pixels

4096 X 2160

HDCP

Jā
YES

ATX POWER CONNECTOR (24-PIN)

YES

CPU FAN CONNECTOR

YES

EPS POWER CONNECTOR (8-PIN)

YES

FRONT PANEL AUDIO CONNECTOR

YES

FRONT PANEL CONNECTOR

YES

NUMBER OF CPU FAN CONNECTORS

2

NUMBER OF EPS POWER CONNECTORS (8-PIN)

1

NUMBER OF RGB LED PIN HEADERS

4

NUMBER OF SATA III CONNECTORS

4

RGB LED PIN HEADER

YES

TPM CONNECTOR

YES

USB 2.0 CONNECTORS

2

USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS

1

DISPLAYPORT VERSION

2.1

ETHERNET LAN (RJ-45) PORTS

1

HDMI ports quantity

1

HDMI VERSION

2.1

HEADPHONE OUTPUTS

1

USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY

2

USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY

1

USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY

1

WIFI-AP ANTENNA JACK

2

ETHERNET INTERFACE TYPE

2.5 GIGABIT ETHERNET

ETHERNET LAN

YES

Wi-Fi

No
Nē

1ST M.2 HIGHEST PCI EXPRESS GENERATION

5.0

1ST M.2 LARGEST KEY SIZE

25110

2ND M.2 HIGHEST PCI EXPRESS GENERATION

4.0

2ND M.2 LARGEST KEY SIZE

25110

NUMBER OF M.2 (M) SLOTS

2

PCI EXPRESS X16 (GEN 3.X) SLOTS

1

PCI EXPRESS X16 (GEN 5.X) SLOTS

1

ACPI VERSION

5.0

BIOS MEMORY SIZE, Mbit

256

BIOS TYPE

UEFI AMI

CLEAR CMOS BUTTON

YES

CLEAR CMOS JUMPER

YES

DESKTOP MANAGEMENT INTERFACE (DMI) VERSION

2.7

SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION

2.7

Battery technology

LITHIUM-MANGANESE DIOXIDE (LIMNO2)

Battery type

CR2032

BATTERY WEIGHT, g

3

COUNTRY OF ORIGIN

CHINA

LITHIUM WEIGHT PER BATTERY, g

0.07

NUMBER OF BATTERY CELLS

1

PACKAGE DEPTH, mm

268

PACKAGE HEIGHT, mm

68

PACKAGE WEIGHT, g

1337

PACKAGE WIDTH, mm

270

PRODUCTS PER SHIPPING (INNER) CASE, pc(s)

1

PARALLEL PROCESSING TECHNOLOGY SUPPORT

NOT SUPPORTED

ANTENNA INCLUDED

YES

Batteries included

Yes

SCREWS INCLUDED

YES

WEIGHT, g

1135

UNITS PER PALLET

0

UNITS PER SHIPPING BOX

10

UNIT CALCULATED VOLUME, cubm

0.006161

UNIT CALCULATED WEIGHT, kg

1.25

WARRANTY PERIOD, year(s)

3

12V POWER CONNECTOR

YES

TOTAL NUMBER OF SATA CONNECTORS

4

USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS

1

DisplayPorts quantity

2

MICROPHONE IN

YES

USB 2.0 PORTS QUANTITY

4

Bundled software

NORTON INTERNET SECURITY (OEM VERSION)&NEWLINE;LAN BANDWIDTH MANAGEMENT SOFTWARE

SERIAL PORT HEADERS

1

PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN)

1

Atmiņas kanāli

Duālais kanāls
