Mainboard|ASROCK|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|Z890PRO-AWIFI

Datu lapa

SUMMARY

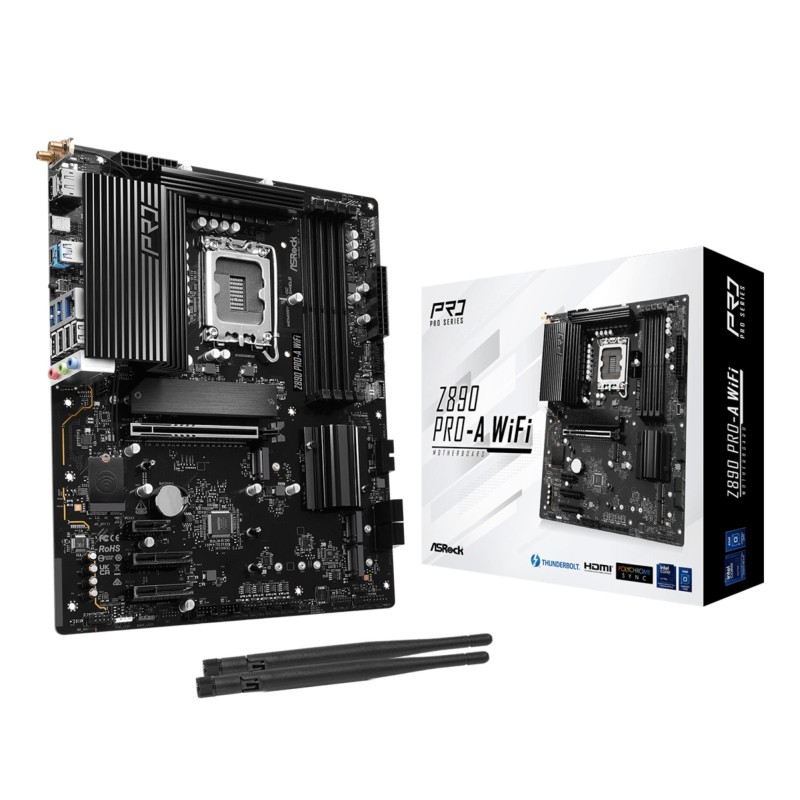

ASROCK Z890 PRO-A WIFI. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2). SUPPORTED MEMORY TYPES: DDR5-SDR

CATEGORY CODE

MBI

CNCODE

84733020

UNIT BOX HEIGHT

0.075

UNIT BOX LENGTH

0.35

UNIT BOX WIDTH

0.28

TOP WI-FI STANDARD

WI-FI 6E (802.11AX)

Wi-Fi

Yes

WI-FI STANDARDS

802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)

BLUETOOTH

YES

BLUETOOTH VERSION

5.3

WINDOWS OPERATING SYSTEMS SUPPORTED

WINDOWS 11 X64

CABLES INCLUDED

SATA

UNIT CALCULATED WEIGHT, kg

1.9

UNIT CALCULATED VOLUME, cubm

0.00888

UNITS PER SHIPPING BOX

5

UNITS PER PALLET

0

COMPONENT FOR

PC

COMPLIANCE CERTIFICATES

CE/FEDERAL COMMUNICATIONS COMMISSION (FCC)

HDMI ports quantity

1

DISPLAYPORT VERSION

1.4

DisplayPorts quantity

1

Processor manufacturer

Intel

PROCESSOR SOCKET

LGA 1851 (SOCKET V1)

MEMORY CHANNELS

DUAL-CHANNEL

MAXIMUM INTERNAL MEMORY, GB

256

AUDIO CHIP

REALTEK ALC897

ETHERNET LAN

YES

USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY

2

ETHERNET LAN (RJ-45) PORTS

1

Motherboard chipset

INTEL Z890

MOTHERBOARD FORM FACTOR

ATX

AUDIO OUTPUT CHANNELS, channels

7.1

MOTHERBOARD CHIPSET FAMILY

INTEL

COMPATIBLE PROCESSOR SERIES

INTEL CORE ULTRA (SERIES 2)

SUPPORTED PROCESSOR SOCKETS

LGA 1851

SUPPORTED MEMORY TYPES

DDR5-SDRAM

NUMBER OF MEMORY SLOTS

4

MEMORY SLOTS TYPE

DIMM

ECC СOMPATIBILITY

NON-ECC

SUPPORTED MEMORY CLOCK SPEED (MAX), MHz

9066

SUPPORTED STORAGE DRIVE INTERFACES

M.2,SATA III

RAID SUPPORT

YES

RAID levels

0/1/10/5

USB 2.0 CONNECTORS

2

USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS

2

NUMBER OF SATA III CONNECTORS

4

ATX POWER CONNECTOR (24-PIN)

YES

CPU FAN CONNECTOR

YES

NUMBER OF CHASSIS FAN CONNECTORS

5

RGB LED PIN HEADER

YES

USB 2.0 PORTS QUANTITY

4

ETHERNET INTERFACE TYPE

2.5 GIGABIT ETHERNET

BIOS TYPE

UEFI AMI

BIOS MEMORY SIZE, Mbit

256

UNBUFFERED MEMORY

YES

NUMBER OF HDDS SUPPORTED

4

NUMBER OF STORAGE DRIVES SUPPORTED

8

SUPPORTED STORAGE DRIVE TYPES

HDD & SSD

FRONT PANEL AUDIO CONNECTOR

YES

NUMBER OF CPU FAN CONNECTORS

2

TPM CONNECTOR

YES

USB 3.2 GEN 2X2 CONNECTORS

1

HEADPHONE OUTPUTS

1

LINE-IN

YES

USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY

1

LAN CONTROLLER

DRAGON RTL8125BG

PCI EXPRESS X16 (GEN 5.X) SLOTS

1

SCREWS INCLUDED

YES

MICROPHONE IN

YES

PCI EXPRESS X1 (GEN 4.X) SLOTS

1

12V POWER CONNECTOR

YES

Model

Z890 PRO-A WIFI

USB 3.2 GEN 2X2 TYPE-C PORTS QUANTITY

1

Thunderbolt ports quantity

1

AUDIO CONNECTOR

YES

PCI EXPRESS X4 (GEN 4.X) SLOTS

2
