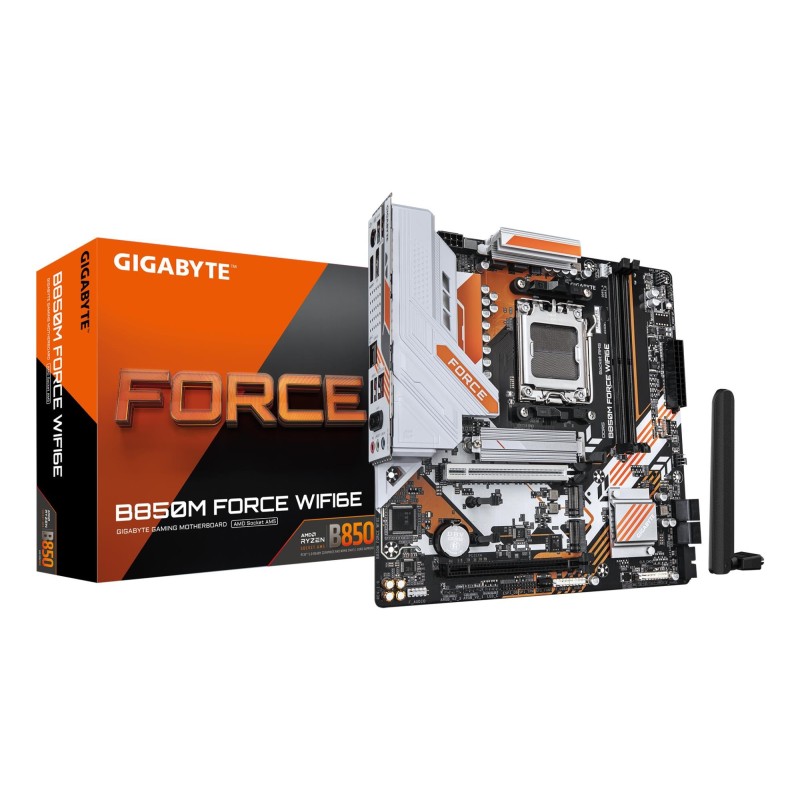

GIGABYTE B850M FORCE WIFI6E AMD B850 Socket AM5 micro ATX

B850M FORCE WF6E 1.2

GIGABYTE B850M FORCE WIFI6E, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 128 GB

127.22
Tax included
Quantity

Pay now
Description
GIGABYTE B850M FORCE WIFI6E. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Supported memory typesDDR5-SDRAM
Number of memory slots2
Maximum internal memory128 GB
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds9600,9200,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Supported memory clock speed (max)9600 MHz
Unbuffered memoryYes
Maximum internal memory per slot64 GB
Supported storage drive interfacesM.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive typesHDD & SSD
Number of HDDs supported4
Number of storage drives supported7
RAID supportYes
RAID levels0, 1, 5, 10
Parallel processing technology supportNot supported
Maximum resolution4096 x 2160 pixels
HDCPYes
DirectX version12.0
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors2
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)1
TPM connectorYes
12V power connectorYes
Number of water pump connectors2
RGB LED pin headerYes
Number of RGB LED pin headers4
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
PS/2 ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Line-inYes
Microphone inYes
WiFi-AP antenna jack2
Wi-FiYes
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller modelMediaTek MT7902
BluetoothYes
Bluetooth version5.3
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B850
Audio output channels7.1 channels
Audio chipRealtek ALC897
Product colorDark brown
PC health monitoringFan, Temperature, Voltage, Water cooling
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Country of originChina
Quantity per shipping (inner) case1 pc(s)
Battery weight0.106 oz (3 g)
Lithium weight per battery0.00247 oz (0.0700 g)
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Package width10.6" (270 mm)
Package depth10.6" (268 mm)
Package height2.68" (68 mm)
Package weight3.09 lbs (1.4 kg)
Width9.61" (244 mm)
Depth9.61" (244 mm)
Height1.38" (35 mm)
Batteries includedYes
Antenna includedYes
Screws includedYes
Bundled softwareNorton® Internet Security (OEM version)
Weight2.69 lbs (1.22 kg)
Warranty period3 year(s)
