Mainboard|ASROCK|Intel H810|LGA 1851 (Socket V1)|micro ATX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|1xNumber of M.2 (M) s

Характеристики

SUMMARY

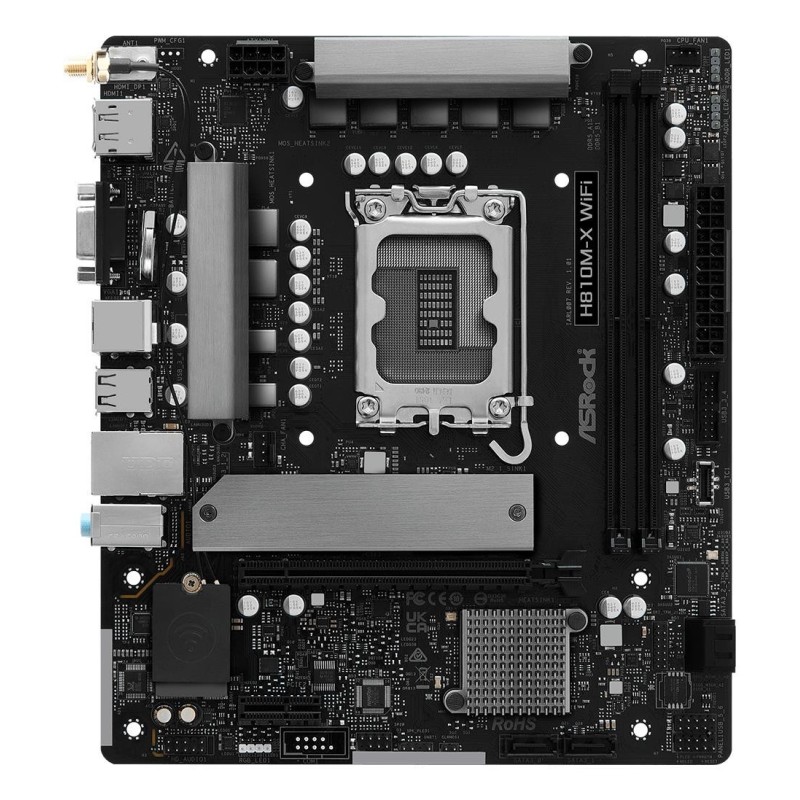

ASROCK H810M-X WIFI. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2). SUPPORTED MEMORY TYPES: DDR5-SDRAM&

CATEGORY CODE

MBI

CNCODE

84733020

UNIT BOX HEIGHT

0.06

UNIT BOX LENGTH

0.28

UNIT BOX WIDTH

0.24

AUDIO OUTPUT CHANNELS, channels

7.1

Motherboard chipset

INTEL H810

MOTHERBOARD CHIPSET FAMILY

INTEL

MOTHERBOARD FORM FACTOR

MICRO ATX

PRODUCT COLOUR

MULTICOLOUR

WINDOWS OPERATING SYSTEMS SUPPORTED

WINDOWS 11 X64

COMPATIBLE PROCESSOR SERIES

INTEL CORE ULTRA (SERIES 2)

Processor manufacturer

Intel

PROCESSOR SOCKET

LGA 1851 (SOCKET V1)

ECC СOMPATIBILITY

NON-ECC

MAXIMUM INTERNAL MEMORY, GB

128

MEMORY CHANNELS

DUAL-CHANNEL

MEMORY SLOTS TYPE

DIMM

NUMBER OF MEMORY SLOTS

2

SUPPORTED MEMORY CLOCK SPEED (MAX), MHz

6400

SUPPORTED MEMORY TYPES

DDR5-SDRAM

UNBUFFERED MEMORY

YES

NUMBER OF HDDS SUPPORTED

4

NUMBER OF STORAGE DRIVES SUPPORTED

5

SUPPORTED STORAGE DRIVE INTERFACES

M.2,SATA III

SUPPORTED STORAGE DRIVE TYPES

HDD & SSD

COMPONENT FOR

PC

ATX POWER CONNECTOR (24-PIN)

YES

CPU FAN CONNECTOR

YES

EPS POWER CONNECTOR (8-PIN)

YES

FRONT PANEL AUDIO CONNECTOR

YES

NUMBER OF CHASSIS FAN CONNECTORS

1

NUMBER OF CPU FAN CONNECTORS

1

NUMBER OF SATA III CONNECTORS

4

RGB LED PIN HEADER

YES

TPM CONNECTOR

YES

USB 2.0 CONNECTORS

1

USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS

2

DISPLAYPORT VERSION

1.4

ETHERNET LAN (RJ-45) PORTS

1

HDMI ports quantity

1

LINE-IN

YES

USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY

2

BLUETOOTH

YES

BLUETOOTH VERSION

5.0

ETHERNET INTERFACE TYPE

2.5 GIGABIT ETHERNET

ETHERNET LAN

YES

LAN CONTROLLER

DRAGON RTL8125BG

TOP WI-FI STANDARD

WI-FI 5 (802.11AC)

Wi-Fi

Yes

WI-FI STANDARDS

802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)

NUMBER OF M.2 (M) SLOTS

1

PCI EXPRESS X16 (GEN 4.X) SLOTS

1

BIOS MEMORY SIZE, Mbit

256

BIOS TYPE

UEFI AMI

PARALLEL PROCESSING TECHNOLOGY SUPPORT

NOT SUPPORTED

UNITS PER PALLET

0

UNITS PER SHIPPING BOX

1

UNIT CALCULATED VOLUME, cubm

0.004032

UNIT CALCULATED WEIGHT, kg

0.92

12V POWER CONNECTOR

YES

DisplayPorts quantity

1

MICROPHONE IN

YES

PS/2 PORTS QUANTITY

1

USB 2.0 PORTS QUANTITY

4

VGA (D-SUB) PORTS QUANTITY

1

Certification

- FCC, CE&NEWLINE;- ERP/EUP READY (ERP/EUP READY POWER SUPPLY IS REQUIRED)

Compatible operating systems

MICROSOFT WINDOWS 11 64-BIT

PCI EXPRESS X1 (GEN 4.X) SLOTS

1
