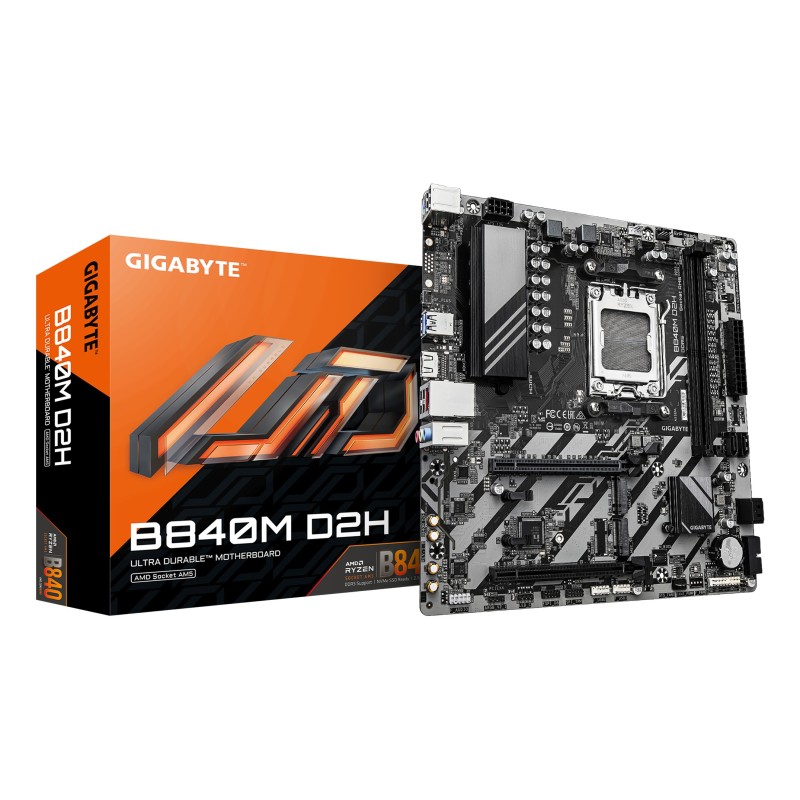

GIGABYTE B840M D2H материнская плата AMD B840 Socket AM5 Микро ATX

Характеристики

SUMMARY

GIGABYTE B840M D2H MOTHERBOARD - AMD RYZEN 9000 CPUS, 5+2+2 PHASES VRM, UP TO 7600MHZ DDR5, 1XPCIE 4.0 + 1XPCIE 3.0 M.2, 2.5GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTUR

CATEGORY CODE

MBA

CNCODE

84733020

UNIT BOX HEIGHT

0.06

UNIT BOX LENGTH

0.26

UNIT BOX WIDTH

0.27

AUDIO CHIP

REALTEK ALC897

AUDIO OUTPUT CHANNELS, channels

7.1

COOLING TYPE

PASSIVE

Motherboard chipset

AMD B840

MOTHERBOARD CHIPSET FAMILY

AMD

MOTHERBOARD FORM FACTOR

MICRO ATX

PC HEALTH MONITORING

FAN/TEMPERATURE/VOLTAGE/WATER COOLING

POWER SOURCE TYPE

ATX

PRODUCT COLOUR

DARK BROWN

WINDOWS OPERATING SYSTEMS SUPPORTED

WINDOWS 10 X64/WINDOWS 11 X64

COMPATIBLE PROCESSOR SERIES

AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES

Processor manufacturer

AMD

PROCESSOR SOCKET

SOCKET AM5

SUPPORTED PROCESSOR SOCKETS

SOCKET AM5

ECC СOMPATIBILITY

NON-ECC

MAXIMUM INTERNAL MEMORY, GB

128

MAXIMUM INTERNAL MEMORY PER SLOT, GB

64

MEMORY CHANNELS

DUAL-CHANNEL

MEMORY SLOTS TYPE

DIMM

NUMBER OF MEMORY SLOTS

2

SUPPORTED MEMORY CLOCK SPEED (MAX), MHz

7600

SUPPORTED MEMORY CLOCK SPEEDS, MHz

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600

SUPPORTED MEMORY TYPES

DDR5-SDRAM

UNBUFFERED MEMORY

YES

NUMBER OF HDDS SUPPORTED

4

NUMBER OF STORAGE DRIVES SUPPORTED

6

RAID levels

0/1/10

RAID SUPPORT

YES

SUPPORTED STORAGE DRIVE INTERFACES

M.2,PCI EXPRESS 4.0,SATA III

SUPPORTED STORAGE DRIVE TYPES

HDD & SSD

DIRECTX VERSION

12.0

COMPONENT FOR

PC

MAXIMUM RESOLUTION, pixels

4096 X 2160

HDCP

YES
Да

ATX POWER CONNECTOR (24-PIN)

YES

CPU FAN CONNECTOR

YES

EPS POWER CONNECTOR (8-PIN)

YES

FRONT PANEL AUDIO CONNECTOR

YES

FRONT PANEL CONNECTOR

YES

NUMBER OF CHASSIS FAN CONNECTORS

1

NUMBER OF CPU FAN CONNECTORS

2

NUMBER OF EPS POWER CONNECTORS (8-PIN)

1

NUMBER OF RGB LED PIN HEADERS

3

NUMBER OF SATA III CONNECTORS

4

NUMBER OF WATER PUMP CONNECTORS

1

RGB LED PIN HEADER

YES

TPM CONNECTOR

YES

USB 2.0 CONNECTORS

2

USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS

1

ETHERNET LAN (RJ-45) PORTS

1

HDMI ports quantity

1

HDMI VERSION

2.1

HEADPHONE OUTPUTS

1

LINE-IN

YES
Да

USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY

2

ETHERNET INTERFACE TYPE

2.5 GIGABIT ETHERNET

ETHERNET LAN

YES

LAN CONTROLLER

REALTEK RTL8125

Wi-Fi

No
Нет

1ST M.2 HIGHEST PCI EXPRESS GENERATION

4.0

1ST M.2 LARGEST KEY SIZE

2580

2ND M.2 HIGHEST PCI EXPRESS GENERATION

3.0

2ND M.2 LARGEST KEY SIZE

2280

NUMBER OF M.2 (M) SLOTS

2

PCI EXPRESS X16 (GEN 3.X) SLOTS

1

PCI EXPRESS X16 (GEN 4.X) SLOTS

1

ACPI VERSION

5.0

BIOS MEMORY SIZE, Mbit

256

BIOS TYPE

UEFI AMI

CLEAR CMOS JUMPER

YES

DESKTOP MANAGEMENT INTERFACE (DMI) VERSION

2.7

SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION

2.7

Battery technology

LITHIUM-MANGANESE DIOXIDE (LIMNO2)

Battery type

CR2032

BATTERY WEIGHT, g

3

LITHIUM WEIGHT PER BATTERY, g

0.07

NUMBER OF BATTERY CELLS

1

PACKAGE DEPTH, mm

265

PACKAGE HEIGHT, mm

54

PACKAGE WEIGHT, g

1026.4

PACKAGE WIDTH, mm

265

PRODUCTS PER SHIPPING (INNER) CASE, pc(s)

1

PARALLEL PROCESSING TECHNOLOGY SUPPORT

NOT SUPPORTED

Batteries included

Yes

SCREWS INCLUDED

YES

WEIGHT, g

940

UNITS PER PALLET

0

UNITS PER SHIPPING BOX

10

UNIT CALCULATED VOLUME, cubm

0.004669

UNIT CALCULATED WEIGHT, kg

1.04

WARRANTY PERIOD, year(s)

3

MICROPHONE IN

YES

PS/2 PORTS QUANTITY

1

USB 2.0 PORTS QUANTITY

4

Bundled software

NORTON® INTERNET SECURITY (OEM VERSION)&NEWLINE;LAN BANDWIDTH MANAGEMENT SOFTWARE

Atmiņas kanāli

Dual-channel
