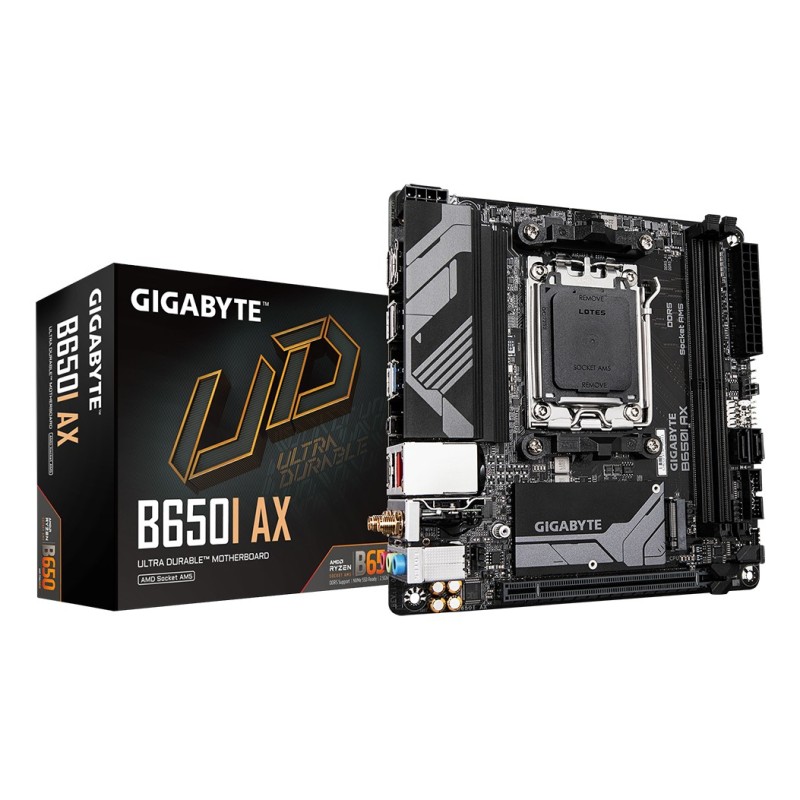

GIGABYTE B650I AX материнская плата AMD B650 Socket AM5 Mini ITX

Характеристики

SUMMARY

GIGABYTE B650I AX MOTHERBOARD - AMD RYZEN 9000 SERIES CPUS, 5+2+1 PHASES VRM, UP TO 6400MHZ DDR5 (OC), 1XPCIE 4.0 M.2, 2.5GBE LAN, WIFI 6E, USB 3.2 GEN 2. PROCESSOR

CATEGORY CODE

MBA

CNCODE

84733020

UNIT BOX HEIGHT

0.065

UNIT BOX LENGTH

0.18

UNIT BOX WIDTH

0.225

AUDIO CHIP

REALTEK ALC897

AUDIO OUTPUT CHANNELS, channels

7.1

Motherboard chipset

AMD B650

MOTHERBOARD CHIPSET FAMILY

AMD

MOTHERBOARD FORM FACTOR

MINI ITX

PC HEALTH MONITORING

FAN/TEMPERATURE/VOLTAGE

POWER SOURCE TYPE

ATX

PRODUCT COLOUR

BROWN

WINDOWS OPERATING SYSTEMS SUPPORTED

WINDOWS 10 X64/WINDOWS 11 X64

COMPATIBLE PROCESSOR SERIES

AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES

Processor manufacturer

AMD

PROCESSOR SOCKET

SOCKET AM5

SUPPORTED PROCESSOR SOCKETS

SOCKET AM5

ECC СOMPATIBILITY

NON-ECC

MAXIMUM INTERNAL MEMORY, GB

128

MAXIMUM INTERNAL MEMORY PER SLOT, GB

64

MEMORY CHANNELS

DUAL-CHANNEL

MEMORY SLOTS TYPE

DIMM

NUMBER OF MEMORY SLOTS

2

SUPPORTED MEMORY CLOCK SPEED (MAX), MHz

6400

SUPPORTED MEMORY CLOCK SPEEDS, MHz

4400/4800/5200/5600/6000/6200/6400

SUPPORTED MEMORY TYPES

DDR5-SDRAM

UNBUFFERED MEMORY

YES

NUMBER OF HDDS SUPPORTED

2

NUMBER OF STORAGE DRIVES SUPPORTED

3

RAID levels

0/1

RAID SUPPORT

YES

SUPPORTED STORAGE DRIVE INTERFACES

M.2,SATA III

SUPPORTED STORAGE DRIVE TYPES

HDD & SSD

DIRECTX VERSION

12.0

COMPONENT FOR

PC

MAXIMUM RESOLUTION, pixels

4096 X 2160

HDCP

YES
Да

ATX POWER CONNECTOR (24-PIN)

YES

CPU FAN CONNECTOR

YES

EPS POWER CONNECTOR (8-PIN)

YES

FRONT PANEL AUDIO CONNECTOR

YES

FRONT PANEL CONNECTOR

YES

NUMBER OF CHASSIS FAN CONNECTORS

2

NUMBER OF CPU FAN CONNECTORS

1

NUMBER OF RGB LED PIN HEADERS

2

NUMBER OF SATA III CONNECTORS

2

RGB LED PIN HEADER

YES

USB 2.0 CONNECTORS

1

USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS

2

DISPLAYPORT VERSION

1.4

ETHERNET LAN (RJ-45) PORTS

1

HDMI ports quantity

1

HDMI VERSION

2.1

HEADPHONE OUTPUTS

1

LINE-IN

YES
Да

USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY

1

USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY

1

WIFI-AP ANTENNA JACK

2

BLUETOOTH

YES
Да

BLUETOOTH VERSION

5.3

ETHERNET INTERFACE TYPE

2.5 GIGABIT ETHERNET

ETHERNET LAN

YES

LAN CONTROLLER

REALTEK RTL8125

TOP WI-FI STANDARD

WI-FI 6E (802.11AX)

Wi-Fi

Yes
Да

WI-FI STANDARDS

802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)

WLAN CONTROLLER MODEL

REALTEK RTL8852CE

1ST M.2 HIGHEST PCI EXPRESS GENERATION

4.0

1ST M.2 LARGEST KEY SIZE

2280

NUMBER OF M.2 (M) SLOTS

1

PCI EXPRESS X16 (GEN 4.X) SLOTS

1

ACPI VERSION

5.0

BIOS MEMORY SIZE, Mbit

256

BIOS TYPE

UEFI AMI

CLEAR CMOS JUMPER

YES

DESKTOP MANAGEMENT INTERFACE (DMI) VERSION

2.7

SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION

2.7

Battery technology

LITHIUM-MANGANESE DIOXIDE (LIMNO2)

Battery type

CR2032

BATTERY WEIGHT, g

3

COUNTRY OF ORIGIN

CHINA

LITHIUM WEIGHT PER BATTERY, g

0.07

NUMBER OF BATTERY CELLS

1

PACKAGE DEPTH, mm

180

PACKAGE HEIGHT, mm

65

PACKAGE WEIGHT, g

879

PACKAGE WIDTH, mm

222

PRODUCTS PER SHIPPING (INNER) CASE, pc(s)

1

PARALLEL PROCESSING TECHNOLOGY SUPPORT

NOT SUPPORTED

ANTENNA INCLUDED

YES

Batteries included

Yes

SCREWS INCLUDED

YES

UNITS PER PALLET

0

UNITS PER SHIPPING BOX

1

UNIT CALCULATED VOLUME, cubm

0.002632

UNIT CALCULATED WEIGHT, kg

0.77

WARRANTY PERIOD, year(s)

3

DISCRETE GRAPHICS SUPPORT

YES

12V POWER CONNECTOR

YES

NUMBER OF EATX POWER CONNECTORS

1

DisplayPorts quantity

1

MICROPHONE IN

YES

USB 2.0 PORTS QUANTITY

3

CHASSIS INTRUSION CONNECTOR

YES

Bundled software

NORTON® INTERNET SECURITY (OEM VERSION)&NEWLINE;LAN BANDWIDTH MANAGEMENT SOFTWARE

USB 3.2 GEN 1 (3.1 GEN 1) TYPE-C PORTS QUANTITY

1

Atmiņas kanāli

Dual-channel
