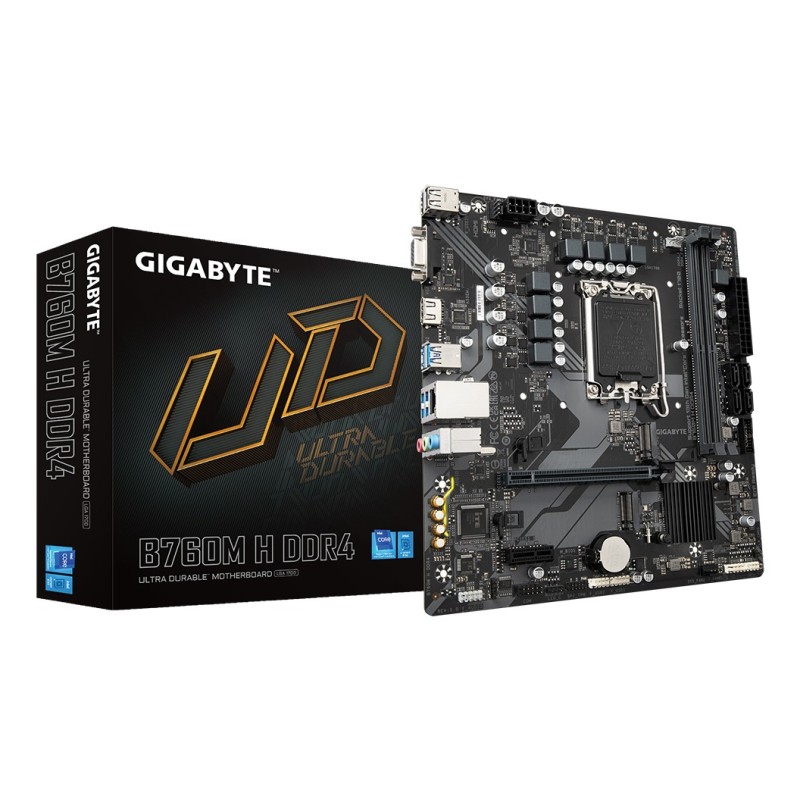

GIGABYTE B760M H DDR4 mātes plate Intel B760 Express LGA 1700 mikro ATX

Datu lapa

SUMMARY

GIGABYTE B760M H DDR4 MOTHERBOARD - SUPPORTS INTEL CORE 14TH GEN CPUS, 6+1+1 PHASES DIGITAL VRM, UP TO 3200MHZ DDR4 (OC), 2XPCIE 4.0 M.2, GBE LAN, USB 3.2 GEN1. PROCESSOR MANUFA

CATEGORY CODE

MBI

CNCODE

84733020

UNIT BOX HEIGHT

0.055

UNIT BOX LENGTH

0.27

UNIT BOX WIDTH

0.265

AUDIO CHIP

REALTEK ALC897

AUDIO OUTPUT CHANNELS, channels

7.1

Motherboard chipset

INTEL B760 EXPRESS

MOTHERBOARD CHIPSET FAMILY

INTEL

MOTHERBOARD FORM FACTOR

MICRO ATX

WINDOWS OPERATING SYSTEMS SUPPORTED

WINDOWS 10/WINDOWS 11

COMPATIBLE PROCESSOR SERIES

INTEL® CELERON®/INTEL® PENTIUM® GOLD

Processor manufacturer

Intel

PROCESSOR SOCKET

LGA 1700

ECC СOMPATIBILITY

NON-ECC

MAXIMUM INTERNAL MEMORY, GB

64

MEMORY CHANNELS

DUAL-CHANNEL

MEMORY SLOTS TYPE

DIMM

NUMBER OF MEMORY SLOTS

2

SUPPORTED MEMORY TYPES

DDR4-SDRAM

RAID levels

0/1/10/5

RAID SUPPORT

YES

SUPPORTED STORAGE DRIVE INTERFACES

M.2,SATA III

ATX POWER CONNECTOR (24-PIN)

YES

CPU FAN CONNECTOR

YES

EPS POWER CONNECTOR (8-PIN)

YES

FRONT PANEL AUDIO CONNECTOR

YES

NUMBER OF SATA III CONNECTORS

4

TPM CONNECTOR

YES

USB 2.0 CONNECTORS

2

USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS

1

ETHERNET LAN (RJ-45) PORTS

1

HDMI ports quantity

1

USB 2.0 PORTS QUANTITY

2

USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY

4

ETHERNET INTERFACE TYPE

GIGABIT ETHERNET

ETHERNET LAN

YES

Wi-Fi

No
Nē

NUMBER OF M.2 (M) SLOTS

2

PCI EXPRESS X16 (GEN 4.X) SLOTS

1

BIOS MEMORY SIZE, Mbit

128

BIOS TYPE

UEFI AMI

COMPONENT FOR

PC

POWER SOURCE TYPE

ATX

PRODUCT COLOUR

BROWN

Model

B760M H DDR4 (REV. 1.0)

UNITS PER SHIPPING BOX

1

UNIT CALCULATED VOLUME, cubm

0.003935

UNIT CALCULATED WEIGHT, kg

0.752

SUPPORTED PROCESSOR SOCKETS

LGA 1700

SUPPORTED MEMORY CLOCK SPEED (MAX), MHz

3200

SUPPORTED MEMORY CLOCK SPEEDS, MHz

2133/2400/2666/2933/3000/3200

NUMBER OF HDDS SUPPORTED

4

NUMBER OF STORAGE DRIVES SUPPORTED

6

RGB LED PIN HEADER

YES

DISPLAYPORT VERSION

1.4

DisplayPorts quantity

1

HDMI VERSION

1.4

PACKAGE DEPTH, mm

265

PACKAGE HEIGHT, mm

54

PACKAGE WEIGHT, g

825

PACKAGE WIDTH, mm

265

PARALLEL PROCESSING TECHNOLOGY SUPPORT

NOT SUPPORTED

DIRECTX VERSION

12.1

FRONT PANEL CONNECTOR

YES

ACPI VERSION

5.0

CLEAR CMOS JUMPER

YES

DESKTOP MANAGEMENT INTERFACE (DMI) VERSION

2.7

SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION

2.7

Battery technology

LITHIUM-MANGANESE DIOXIDE (LIMNO2)

Battery type

CR2032

BATTERY WEIGHT, g

3

COUNTRY OF ORIGIN

CHINA

LITHIUM WEIGHT PER BATTERY, g

0.07

NUMBER OF BATTERY CELLS

1

PRODUCTS PER SHIPPING (INNER) CASE, pc(s)

1

Batteries included

Yes

WARRANTY PERIOD, year(s)

3

SERIAL PORT HEADERS

1

MAXIMUM NUMBER OF SMP PROCESSORS

1

MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB

64

SUPPORTED MEMORY MODULE CAPACITIES

12GB/16GB/1GB/2GB/32GB/4GB/8GB

TOTAL NUMBER OF SATA CONNECTORS

4

VGA (D-SUB) PORTS QUANTITY

1

Atmiņas kanāli

Duālais kanāls

Procesora atbalstīta maksimālā iekšējā atmiņa

64 GB
