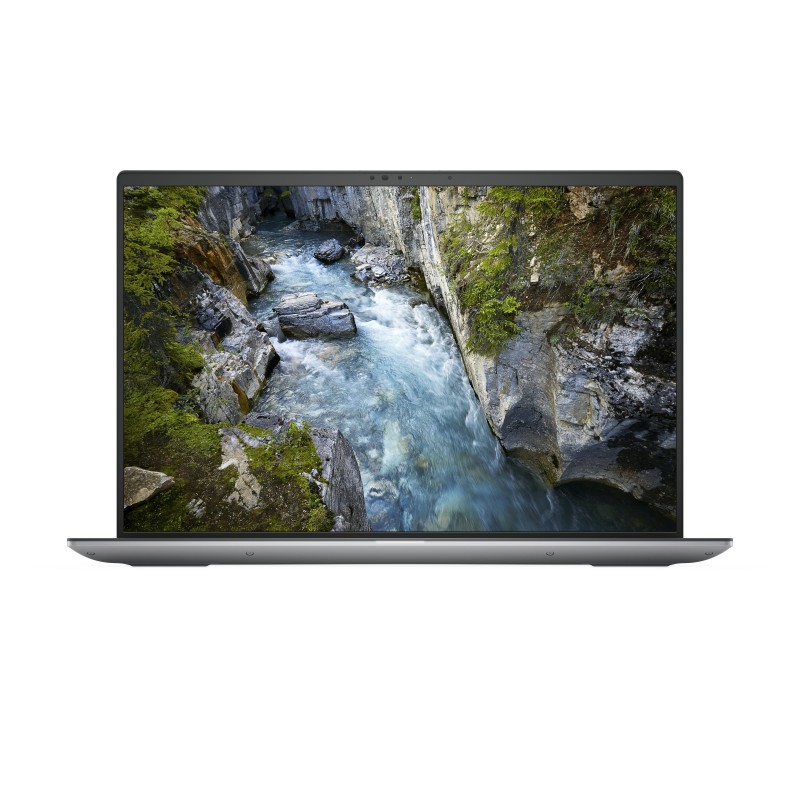

DELL Precision 5690 Intel Core Ultra 7 165H Mobila darbstacija 40,6 cm (16") Full HD+ 16 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX

Datu lapa

LONG DESCRIPTION

DELL PRECISION 5690. PRODUCT TYPE: MOBILE WORKSTATION, FORM FACTOR: CLAMSHELL. PROCESSOR FAMILY: INTEL CORE ULTRA 7, PROCESSOR MODEL: 165H. DISPLAY DIAGONAL: 40.6 CM (16"&RPAR

SUMMARY

DELL PRECISION 5690. PRODUCT TYPE: MOBILE WORKSTATION, FORM FACTOR: CLAMSHELL. PROCESSOR FAMILY: INTEL CORE ULTRA 7, PROCESSOR MODEL: 165H. DISPLAY DIAGONAL: 40.6 CM (16"&RPAR

CATEGORY CODE

NB

CNCODE

84713000

UNIT BOX HEIGHT

0.375

UNIT BOX LENGTH

0.46

EFFICIENT CORES

8

UNIT BOX WIDTH

0.12

EFFICIENT-CORE BASE FREQUENCY, GHz

0.9

MAXIMUM TURBO POWER, W

115

PERFORMANCE CORES

6

PERFORMANCE-CORE BASE FREQUENCY, GHz

1.4

PROCESSOR BASE POWER, W

28

PROCESSOR BOOST FREQUENCY, GHz

5

PROCESSOR CACHE, MB

24

PROCESSOR CACHE TYPE

SMART CACHE

PROCESSOR CORES

16

Processor family

Intel Core Ultra 7

PROCESSOR GENERATION

INTEL® CORE™ ULTRA (SERIES 1)

Processor manufacturer

Intel

Processor model

165H

SPARSITY SUPPORT

YES

WINDOWS STUDIO EFFECTS SUPPORT

YES

MEMORY CHANNELS

DUAL-CHANNEL

DISCRETE GRAPHICS CARD

YES

DISCRETE GRAPHICS CARD MODEL

NVIDIA RTX 1000 ADA

ON-BOARD GRAPHICS CARD

YES

ON-BOARD GRAPHICS CARD MODEL

INTEL ARC GRAPHICS

INTEL® THUNDERBOLT 4

YES

MAXIMUM INTERNAL MEMORY, GB

16

UNITS PER SHIPPING BOX

1

UNIT CALCULATED VOLUME, cubm

0.02042/0.0207

UNIT CALCULATED WEIGHT, kg

4.6

EFFICIENT-CORE MAX TURBO FREQUENCY, GHz

3.8

LOW POWER EFFICIENT-CORE BASE FREQUENCY, MHz

700

LOW POWER EFFICIENT-CORE MAX TURBO FREQUENCY, GHz

2.5

LOW POWER EFFICIENT-CORES

2

PERFORMANCE-CORE MAX TURBO FREQUENCY, GHz

5

ANTI-GLARE SCREEN

YES

COLOUR GAMUT, %

100

CONTRAST RATIO (TYPICAL)

1300:1

DISPLAY BRIGHTNESS, cd/m²

500

DISPLAY DIAGONAL, "

16

HD TYPE

FULL HD+

LED BACKLIGHT

YES

MAXIMUM REFRESH RATE, Hz

60

NATIVE ASPECT RATIO

16:10

PANEL TYPE

IPS

PIXEL DENSITY, ppi

142

RGB COLOUR SPACE

DCI-P3

TOUCHSCREEN

NO

FORM FACTOR

CLAMSHELL

MARKET POSITIONING

BUSINESS

PRODUCT COLOUR

GREY

PRODUCT TYPE

MOBILE WORKSTATION

MAXIMUM FREQUENCY NPU, GHz

1.4

INTERNAL MEMORY, GB

16

Internal memory type

LPDDR5X-SDRAM

MEMORY CLOCK SPEED, MHz

7467

MEMORY DATA TRANSFER RATE, MT/s

7467

Memory form factor

ON-BOARD

NUMBER OF SSDS INSTALLED

1

NVME

Jā
YES

OPTICAL DRIVE TYPE

NO

SSD CAPACITY, GB

1000

SSD FORM FACTOR

M.2

SSD INTERFACE

PCI EXPRESS 4.0

STORAGE MEDIA

SSD

TOTAL SSDS CAPACITY, GB

1000

TOTAL STORAGE CAPACITY, GB

1000

DISCRETE GRAPHICS CARD MEMORY, GB

6

DISCRETE GRAPHICS MEMORY TYPE

GDDR6

ON-BOARD GPU MANUFACTURER

INTEL

ON-BOARD GRAPHICS CARD FAMILY

INTEL ARC GRAPHICS

Built-in microphone

Yes

NUMBER OF BUILT-IN SPEAKERS

4

NUMBER OF MICROPHONES

2

SPEAKERS MANUFACTURER

WAVES

FRONT CAMERA

YES

FRONT CAMERA HD TYPE

FULL HD

FRONT CAMERA RESOLUTION, pixels

1920 X 1080

FRONT CAMERA RESOLUTION (NUMERIC), MP

2.07

INFRARED (IR) CAMERA

YES

VIDEO CAPTURING SPEED, fps

30

ANTENNA TYPE

2X2

BLUETOOTH

Jā
YES

MOBILE NETWORK CONNECTION

NO

TOP WI-FI STANDARD

WI-FI 7 (802.11BE)

WI-FI STANDARDS

802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6E (802.11AX)/WI-FI 7 (802.11BE)

WLAN CONTROLLER MANUFACTURER

INTEL

WLAN CONTROLLER MODEL

INTEL WI-FI 7 BE200

COMBO HEADPHONE/MIC PORT

YES

HDMI ports quantity

1

HDMI VERSION

2.1

THUNDERBOLT 4 PORTS QUANTITY

2

USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY

1

USB TYPE-C DISPLAYPORT ALTERNATE MODE

YES

ACCELEROMETER

YES

AMBIENT LIGHT SENSOR

YES

GYROSCOPE

Jā
YES

HALL SENSOR

YES

PROXIMITY SENSOR

YES

KEYBOARD BACKLIT

YES

NUMERIC KEYPAD

No

POINTING DEVICE

TOUCHPAD

Operating system architecture

64-BIT

OPERATING SYSTEM INSTALLED

WINDOWS 11 PRO

TRIAL SOFTWARE

NO MICROSOFT OFFICE LICENSE INCLUDED (FED AND PREMIER, EXCEPTION ONLY),MCAFEE BUSINESS PROTECTION 1-YEAR

BATTERY CAPACITY, Wh

99.5

BATTERY CHARGE INDICATOR

YES

BATTERY RECHARGE TIME, h

3

Battery technology

LITHIUM-ION (LI-ION)

BATTERY VOLTAGE, V

11.55

BATTERY WEIGHT, g

363

FAST CHARGING

YES

NUMBER OF BATTERY CELLS

6

AC ADAPTER FREQUENCY, Hz

50 - 60

AC ADAPTER INPUT VOLTAGE, V

100 - 240

AC ADAPTER POWER, W

165

USB POWER DELIVERY (USB PD)

YES

Cable lock slot

Yes

CABLE LOCK SLOT TYPE

WEDGE

FINGERPRINT READER

YES

PASSWORD PROTECTION

YES

TRUSTED PLATFORM MODULE (TPM)

YES

TRUSTED PLATFORM MODULE (TPM) VERSION

2.0

NON-OPERATING ALTITUDE, m

-15.2 - 10668

NON-OPERATING SHOCK, G

160

NON-OPERATING VIBRATION, G

1.3

OPERATING ALTITUDE, m

-15.2 - 3048

OPERATING RELATIVE HUMIDITY (H-H), %

10 - 90

OPERATING SHOCK, G

110

OPERATING TEMPERATURE (T-T), °C

0 - 35

OPERATING VIBRATION, G

0.66

STORAGE RELATIVE HUMIDITY (H-H), %

0 - 95

STORAGE TEMPERATURE (T-T), °C

-40 - 65

DISPLAY RESOLUTION, pixels

1920 X 1200

HEIGHT (FRONT), mm

20.5

HEIGHT (REAR), mm

22.17

WEIGHT, g

2030

CARBON EMISSIONS, END-OF-LIFE (KG OF CO2E)

2.46

CARBON EMISSIONS, LOGISTICS (KG OF CO2E)

6.888

CARBON EMISSIONS, MANUFACTURING (KG OF CO2E)

200.49

CARBON EMISSIONS, ENERGY USAGE (KG OF CO2E)

35.916

TOTAL CARBON FOOTPRINT (KG OF CO2E)

246

CABLES INCLUDED

AC

NB FAMILY NAME

PRECISION

MODEL NAME

5690

PAIA VERSION

GABI VERSION 1, 2024

Trusted Platform Module (TPM)

Jā

Diskrētā grafikas adaptera atmiņa

6 GB

Atmiņas taktātrums

7467 MHz

Atmiņas kanāli

Duālais kanāls
