Mainboard|ASROCK|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|6xUSB 2.

Характеристики

SUMMARY

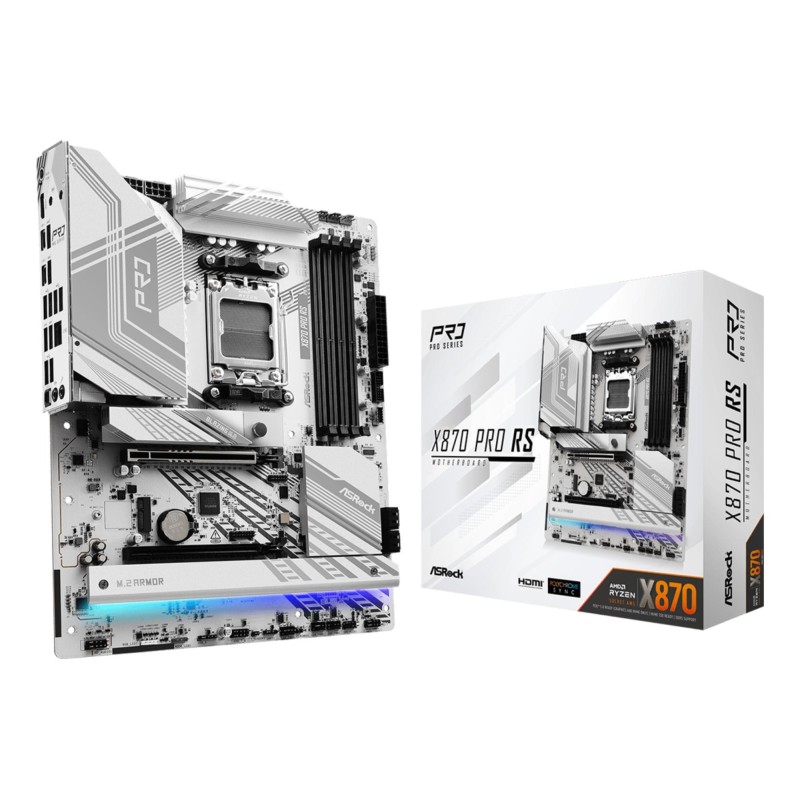

ASROCK X870 PRO RS. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES, AMD RYZEN 8000 SERIES, AMD RYZEN 9000 SERIES. SUPPORTED MEMORY TYPES

CATEGORY CODE

MBA

CNCODE

84733020

UNIT BOX HEIGHT

0.075

UNIT BOX LENGTH

0.35

UNIT BOX WIDTH

0.28

PRODUCT COLOUR

WHITE

UNIT CALCULATED VOLUME, cubm

0.00904

UNIT CALCULATED WEIGHT, kg

2.24

UNITS PER SHIPPING BOX

5

Wi-Fi

No

Processor manufacturer

AMD

MAXIMUM INTERNAL MEMORY, GB

256

MEMORY CHANNELS

DUAL-CHANNEL

AUDIO CHIP

REALTEK ALC1220

ETHERNET LAN

YES

ETHERNET LAN (RJ-45) PORTS

1

HDMI ports quantity

1

HDMI VERSION

2.1

USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY

4

Motherboard chipset

AMD X870

Certification

FCC, CE&NEWLINE;ERP/EUP READY (ERP/EUP READY POWER SUPPLY IS REQUIRED)

COMPONENT FOR

PC

PROCESSOR SOCKET

SOCKET AM5

WINDOWS OPERATING SYSTEMS SUPPORTED

WINDOWS 10 X64/WINDOWS 11 X64

AUDIO OUTPUT CHANNELS, channels

7.1

MOTHERBOARD CHIPSET FAMILY

AMD

MOTHERBOARD FORM FACTOR

ATX

ECC СOMPATIBILITY

ECC & NON-ECC

MEMORY SLOTS TYPE

DIMM

NUMBER OF MEMORY SLOTS

4

SUPPORTED MEMORY TYPES

DDR5-SDRAM

UNBUFFERED MEMORY

YES

NUMBER OF HDDS SUPPORTED

4

NUMBER OF STORAGE DRIVES SUPPORTED

7

RAID levels

0/1/10

RAID SUPPORT

YES

SUPPORTED STORAGE DRIVE INTERFACES

PCI EXPRESS 3.0,PCI EXPRESS 4.0,PCI EXPRESS 5.0,SATA III

SUPPORTED STORAGE DRIVE TYPES

HDD & SSD

ATX POWER CONNECTOR (24-PIN)

YES

CPU FAN CONNECTOR

YES

EPS POWER CONNECTOR (8-PIN)

YES

FRONT PANEL AUDIO CONNECTOR

YES

NUMBER OF CHASSIS FAN CONNECTORS

4

NUMBER OF SATA III CONNECTORS

4

USB 2.0 CONNECTORS

2

USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS

1

USB 3.2 GEN 2X2 CONNECTORS

1

HEADPHONE OUTPUTS

1

MICROPHONE IN

YES

S/PDIF OUT PORT

YES

USB4 GEN 2X2 PORTS QUANTITY

2

ETHERNET INTERFACE TYPE

2.5 GIGABIT ETHERNET

NUMBER OF M.2 (M) SLOTS

3

PCI EXPRESS X16 (GEN 4.X) SLOTS

1

PCI EXPRESS X16 (GEN 5.X) SLOTS

1

BIOS MEMORY SIZE, Mbit

256

BIOS TYPE

UEFI AMI

PARALLEL PROCESSING TECHNOLOGY SUPPORT

CROSSFIRE

COMPATIBLE PROCESSOR SERIES

AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES

Model

X870 PRO RS

USB 2.0 PORTS QUANTITY

6

POWER SOURCE TYPE

ATX

SUPPORTED MEMORY CLOCK SPEED (MAX), MHz

8000

NUMBER OF M.2 (E) SLOTS

1

RGB LED PIN HEADER

YES

MAXIMUM RESOLUTION, pixels

7680 X 4320

HDCP

YES

NUMBER OF CPU FAN CONNECTORS

2

NUMBER OF EPS POWER CONNECTORS (8-PIN)

2

NUMBER OF RGB LED PIN HEADERS

5

NUMBER OF TEMPERATURE SENSOR HEADERS

1

NUMBER OF WATER PUMP CONNECTORS

1

DIGITAL AUDIO OPTICAL OUT

1

LAN CONTROLLER

DRAGON RTL8125BG

1ST M.2 HIGHEST PCI EXPRESS GENERATION

5.0

1ST M.2 LARGEST KEY SIZE

2280

2ND M.2 HIGHEST PCI EXPRESS GENERATION

4.0

2ND M.2 LARGEST KEY SIZE

2280

3RD M.2 HIGHEST PCI EXPRESS GENERATION

3.0

3RD M.2 LARGEST KEY SIZE

2280
